FLECK/Pentair 2750/2850 Control Valve
2750Product Characteristics And ParametersProduct name2750(FT/ST/SM)Valve body materialLead-free brassInlet/outlet pipe diameter1"NPTMContinuous water yield(pressure drop 0.1MPa)5.9m3/hPeak water yield(pressure drop 0.175MPa)7.5m3/hBackwash flow(pressure drop 0.175MPa)5.68m3/hTime-vari
Send Inquiry
Product Description
2750 Product Characteristics And Parameters
| Product name | 2750(FT/ST/SM) |
| Valve body material | Lead-free brass |
| Inlet/outlet pipe diameter | 1"NPTM |
| Continuous water yield(pressure drop 0.1MPa) | 5.9m3/h |
| Peak water yield(pressure drop 0.175MPa) | 7.5m3/h |
| Backwash flow(pressure drop 0.175MPa) | 5.68m3/h |
| Time-variable control | All regeneration steps can be adjustable |
| Center tube diameter | 1.05"O.D. |
| Diameter of sewage pipe | 3/4"NPTF |
| Diameter of salt-absorbing tube | 3/8"&1/2" |
| Diameter of tank interface | 2-1/2"-8NPSM |
| Operating temperature | 34°-110°F(1°-43℃) |
| Occasion applicable | chemical industry,metallurgy pharmacy,medical,treatment,etc |

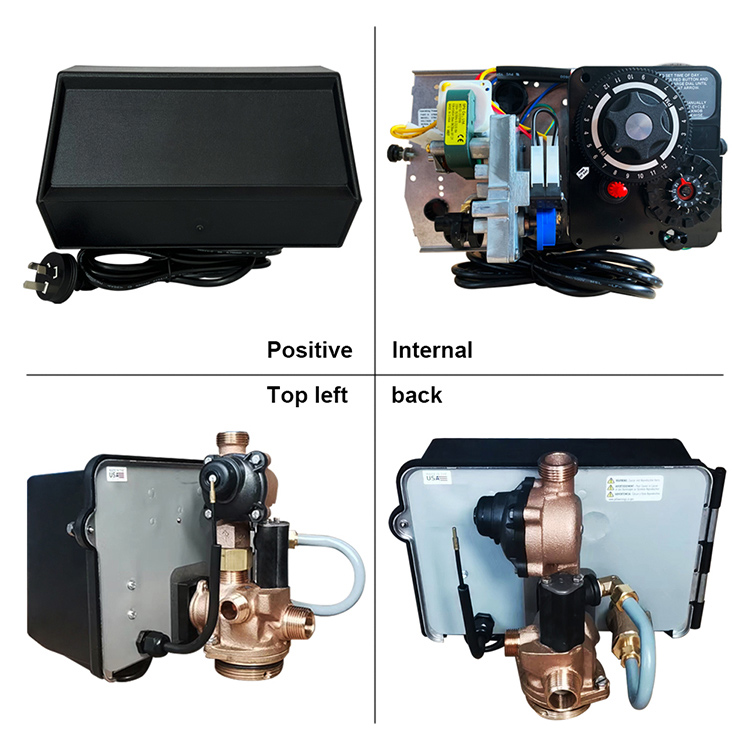

2750 Product Details
2850 Product Characteristics And Parameters
| Product name | 2850(FT/ST/SM) |
| Valve body material | Lead-free brass |
| Inlet/outlet pipe diameter | 1-1/2"NPTF |
| Continuous water yield(pressure drop 0.1MPa) | Side load: 11.5m3/h |
| Peak water yield(pressure drop 0.175MPa) | Side load: 15m3/h |
| Backwash flow(pressure drop 0.175MPa) | 11.13m3/h |
| Time-variable control | All regeneration steps can be adjustable |
| Center tube diameter | 1.9"(1.5")O.D. |
| Diameter of sewage pipe | 1"NPTM |
| Diameter of salt-absorbing tube | 3/8"&1/2" |
| Diameter of tank interface | 4"-8UN |
| Operating temperature | 34°-110°F(1°-43℃) |
| Occasion applicable | chemical industry,metallurgy pharmacy,medical,treatment,etc |

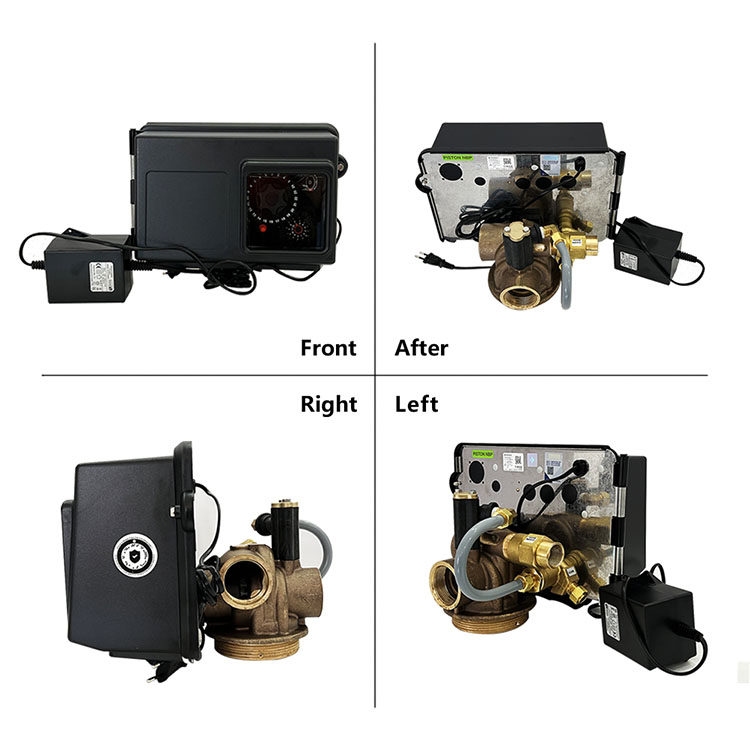

2850 Product Details
