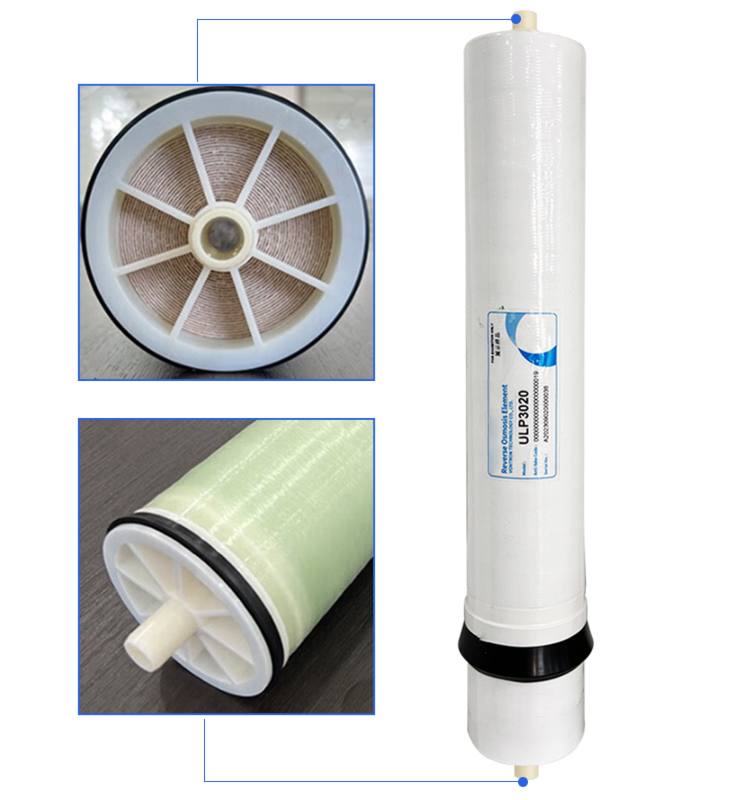

SH3020 ULP Replacement High Membrane
Brief Introduction:ULP series (ultra low pressure) aromaticpolyamideRO element is developed by VONTRON for treatment ofsurface water and underground water. its operation pressure is about 2/3 of low pressure membrane, and therejection rate can reach 99.5%. Thus it can reduce
Send Inquiry
Brief Introduction:
ULP series (ultra low pressure) aromatic polyamide RO element is developed for treatment of surface water and underground water. its operation pressure is about 2/3 of low pressure membrane, and the rejection rate can reach 99.5%. Thus it can reduce the investment cost of related pumps, pipelines, containers and other equipments and the operation cost of RO system, improve economic benefits.
Scope of Application:
ULP series RO element normally suitable for treatment of surface water, underground water and municipal water with TDS is less than 2000 ppm. It is mainly applied in bottle water, drinking water, boiler replenishment water,food processing and pharmaceutical manufacturing industries and other fields.
Specifications and Major Properties:
Model | Active Membrane Area ft2(㎡) | Permeate flow GPD (m3/d) | Stable Rejecion Rate ％ | Feed Spacer Thickness mil |
| ULP32-8040-400 | 400(40.9) | 12650(47.9) | 99.3 | 28 |
| ULP22-8040 | 400(37.2) | 12100(45.8) | 99.0 | 28 |
| ULP32-8040 | 400(37.2) | 10500(39.7) | 99.5 | 28 |
| ULP32-8040/31 | 400(37.2) | 10500(39.7) | 99.5 | 31 |
| ULP4040-PRO | 100(9.3) | 2000(7.6) | 99.7 | 28 |
| ULP21-4040 | 100(9.3) | 2600(9.8) | 99.5 | 28 |
| ULP31-4040 | 100(9.3) | 2000(7.6) | 99.6 | 28 |
| ULP21-4021 | 36(3.3) | 950(3.6) | 99.0 | 28 |
| ULP21-2540 | 30(2.8) | 750(2.8) | 99.0 | 28 |
| ULP21-2521 | 14(1.3) | 300(1.1) | 99 | 28 |
